K3FY

Factory Five Racing GTM

​These pictures are from 2012.  Over the winter I am moving the battery from the rear to the front for better weight distribution.

Added louvers to rear deck lid.  Applied reflective insulation to inside of rear deck lid, shifter cables, wiring harness, fuel cross over hose and headers. Aluminum reflector to protect rear window from radiant heat. Reworked passenger side door hinge, door latch, door popper, tighten suspension bolts, headlight mounts, lenses,

K3FY

  • Home/
  • Factory Five Racing GTM/
  • Blog/
  • Contact/
  • Machines/
  • Drift Projects with my son Brian/
  • Baumann Siderloader Rebuild/
  • Tools/
  • My Ham Shack/
  • Drag Car/

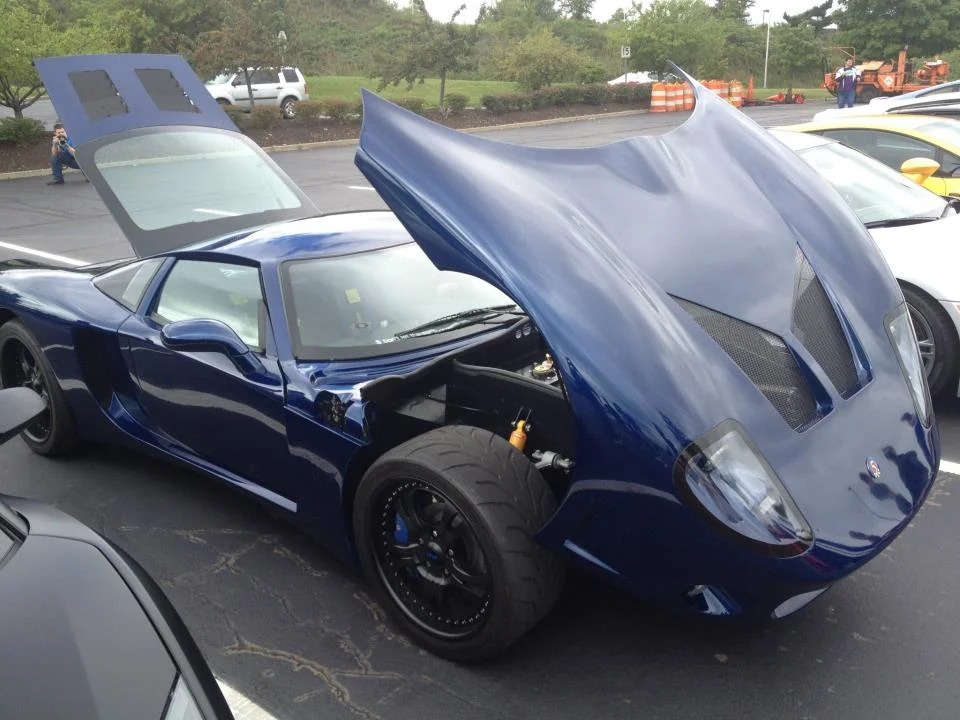

 This is my ​467 Hp Katech LS2, 2600 Lbs GTM.

This is my ​467 Hp Katech LS2, 2600 Lbs GTM.

 I hope to ​see you at pghcnc.com

I hope to ​see you at pghcnc.com

Working on Adjustable A-Arms

Working on Adjustable A-Arms

These machined brackets maintain the exact same pivot point in all three axis as the original but allow rod ends and adjusters to be added.

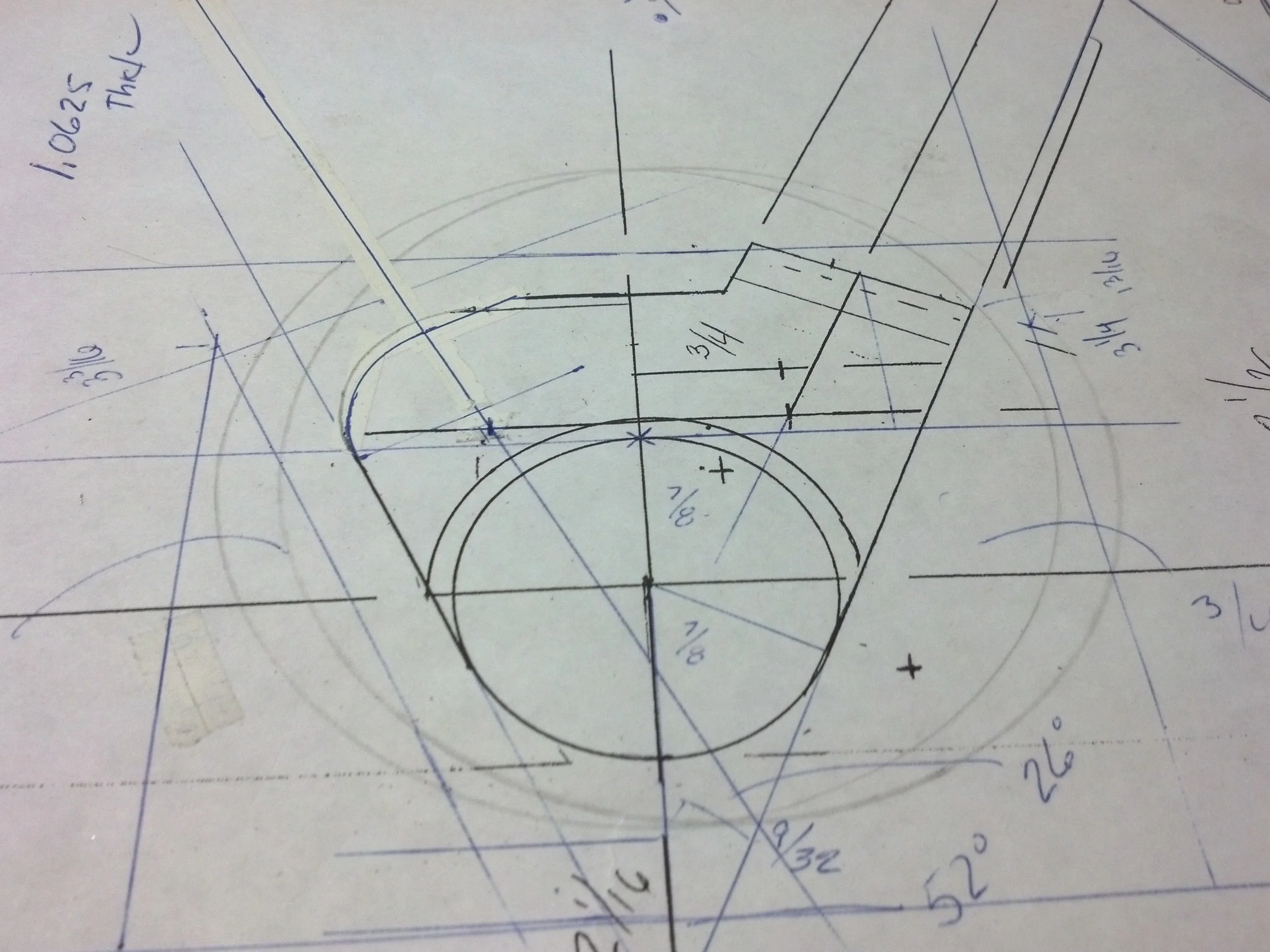

Rough sketch of outer portion

Rough sketch of outer portion

This piece will have the female taper for the ball joint.  It will connect to the clevis on the left via drilled hole/pin and via a 4140 Heat Treated 5/8-18 threaded stud directly into the adjuster on the right.

Underside of bracket

Underside of bracket

The projected portion extends down between the stock FFR GTM welded tabs.  No modification needed.

on track.jpg
1 2 3 4 5 6 7 8 9 10 11 12
Previous Next
 This is my ​467 Hp Katech LS2, 2600 Lbs GTM.
 I hope to ​see you at pghcnc.com
Working on Adjustable A-Arms
Rough sketch of outer portion
Underside of bracket
on track.jpg
